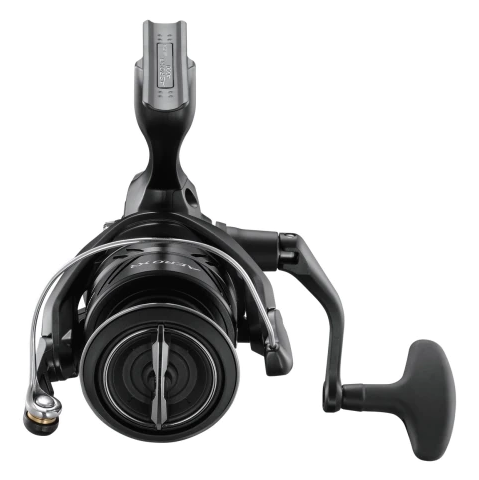

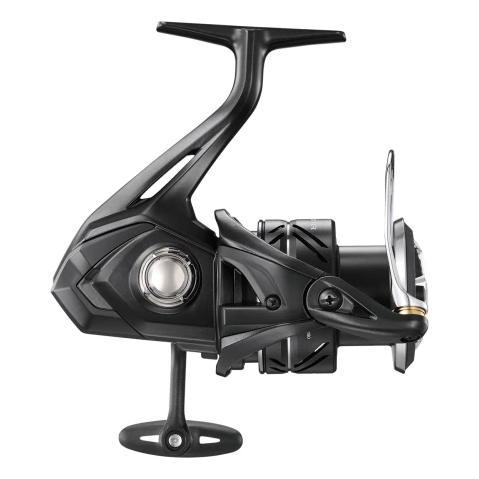

Shimano Reel Aero XR Match and Feeder
The Aero XR is a technically advanced match and feeder reel containing all of the attributes required by top competition anglers. These include an anti-reverse facility, lightweight CI4+ body and rotor, and advanced HAGANE gearing for peerless performance. If you are a competition angler, or fish using a float or feeder, and want a reel to match your ability, the Aero XR is the solution. All of the reels balance perfectly with Shimano’s best Aero X5, X7 and Pro match and feeder rods, giving you an enviable combination that offer a competitive advantage. With their super smooth waterproof drags, and an additional anti-reverse facility, you can play fish directly off the drag when using stronger lines, by back-winding when using fine lines, or by using a combination of both. The smallest 3000 size is perfect for all float fishing and close range feeder fishing, the mid-sized 4000 is ideal for larger float work or mid range feeder fishing and the largest 5000 size is ideal for longer feeder work or mid-range heavy feeder work. With a G-Free CI4+ body and rotor all models are remarkably light, with the 4000 size weighing only 250g, which is a noticeable reduction compared to competitor models of the same size. An additional advantage which you can feel is the precision of the lightweight rotation, which is a result of the CI4+ Rotor construction and the HAGANE Gear, X-SHIP, Silent Drive technology. Additional features include the best AR-C Cold Forged Aluminium spools, (including a spare spool) with a line reducer to reduce the line capacity of the reel. The larger 5000 model has an additional reducer for use with braid when feeder fishing at long range. Power is delivered by a very direct screw in handle and a metal line clip, that is strong and line-safe, reinforces the XR’s feeder fishing pedigree.Visually, the understated ‘stealth-like’ looks of the Aero XR are stunning and combined with the advanced engineering technology can’t fail to inspire your confidence to perform at the highest level.
| Model | Bearings | Gear Ratio | Line retrieve crank | Maximum drag force | Line Capacity (mm/m) | Weight |
|---|---|---|---|---|---|---|
| AEROXRC3000 | 5+1 | 5.0:1 | 73cm | 9kg | 0.25-210,0.30-130 | 210g |
| AEROXR4000 | 5+1 | 4.7:1 | 75cm | 11kg | 0.30-180,0.35-130 | 245g |
| AEROXRC5000 | 5+1 | 4.7:1 | 80cm | 11kg | 0.35-175,0.40-120 | 250g |
- Front Drag
- 2+1BB
- 25 | 2500
Shimano reel features
Shimano AR-C Spool is a patented spool design with an angled spool lip. This design enables the line to leave the spool with less friction and in smaller coils resulting in longer more accurate casts. AR-C spools are proven to reduce backlash and wind knots when using braid.
Diecast aluminium is used for many types of reel and is most common on fixed spool reel bodies and rotors. It is also used for spools on P4 fixed spool reels and come baitcasting models.
This feature eliminates wobble during the retrieve by counter balancing the rotor to enhance sensitivity and smoothness. By using computer balancing, an approach similar to car tire balancing, Shimano is able to redistribute the rotor weight to create smooth rotation and eliminate vibrations caused by the reel.
The special grooved design of the Shimano Power Roller significantly reduces line twist and is a big advantage when using thin mono and braid.
The latest generation of the Super Stopper. It uses a one-way, stainless steel roller bearing that eliminates backplay. This provides the angler with instant hooksetting power.
CI4 stands for Carbon Interfusion with the 4 referring to the number of electrons in the Carbon atom. Ultimately, this means CI4 is reinforced Carbon Fiber. The new CI4+ is the next generation of Shimano's CI4 material and 250% stronger. It is over one and a half times stronger than Shimano's normal XT-7 graphite and is over 20% lighter. Because it does not contain metal, it is also impervious to rust. So, as a result of its strength and weight, it allows Shimano to create an extremely lightweight reel with very precise tolerances.
